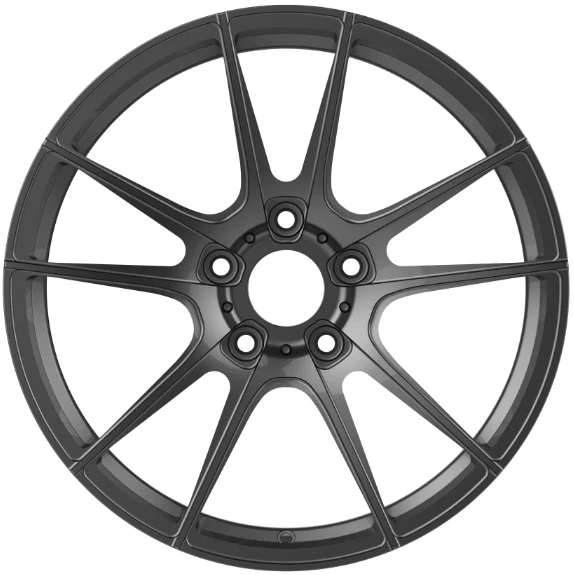

18-inch Split-Five Forged Wheel - 5127
Sport-sedan aftermarket; any track duty requires a separate approved load/test program.
| Design model | 5127 |
|---|---|
| Size | 18 x 8 in (457.2 x 203.2 mm) |
| PCD range | 3.937 to 4.724 in (100 to 120 mm) |
| ET range** | 1.102 to 1.772 in (28 to 45 mm) |
*U.S. procurement target, not approved fitment. **ET shown for first listed size. Confirm alloy, process, load and tests.
Construction & Material
Alloy wheel in the forged-wheel program. Confirm alloy, heat treatment and complete-wheel construction by model.
Options
Proposed 5 x 4.409 in (5 x 112 mm); black or metallic finish by approved sample.
Size options
18 x 8 in (457.2 x 203.2 mm); 18 x 8.5 in (457.2 x 215.9 mm)
Procurement Value
A narrow two-width program suits limited stocking; production availability requires confirmation.
Mounting & Selection
Vehicle/year/trim, brake package, diameter/width, lug count/PCD, center bore, offset, load, TPMS and finish.
Standards & Qualification
FMVSS 110/120 applicability; SAE J2530 aftermarket test program. Fitment and test evidence are required for the supplied configuration.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
