WW-P12 · Forged passenger and touring wheels

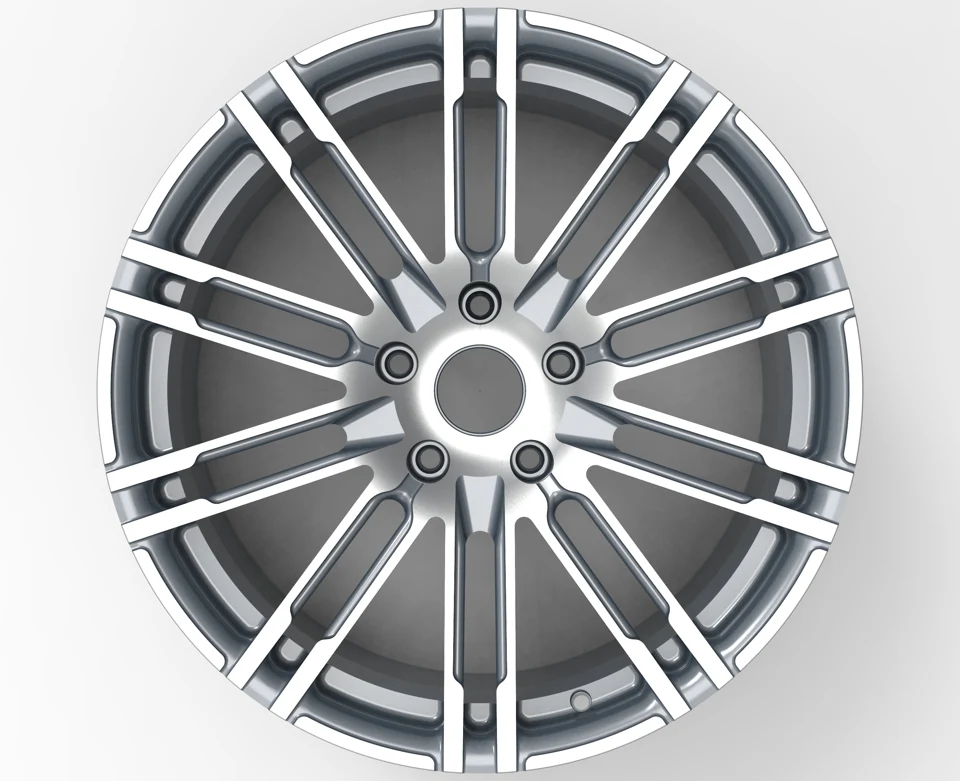

20 x 10 Split-Spoke Forged Wheel - 1020
Wide-wheel passenger and crossover applications after brake and load validation.
| Design model | 1020 |
|---|---|
| Size | 20 x 10 in (508 x 254 mm) |
| PCD range | 3.937 to 4.724 in (100 to 120 mm) |
| ET range** | 1.220 to 2.677 in (31 to 68 mm) |
*U.S. procurement target, not approved fitment. **ET shown for first listed size. Confirm alloy, process, load and tests.
Construction & Material
Alloy wheel in the forged-wheel program. Confirm alloy, heat treatment and complete-wheel construction by model.
Options
Proposed 5 x 4.409 in (5 x 112 mm); approve center bore, high positive ET and axle load.
Size options
20 x 10 in (508 x 254 mm)
Procurement Value
A single listed size limits inventory complexity in the larger-diameter assortment.
Mounting & Selection
Vehicle/year/trim, brake package, diameter/width, lug count/PCD, center bore, offset, load, TPMS and finish.
Standards & Qualification
FMVSS 110/120 applicability; SAE J2530 aftermarket test program. Fitment and test evidence are required for the supplied configuration.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
