WW-P14 · Pickup and SUV wheels

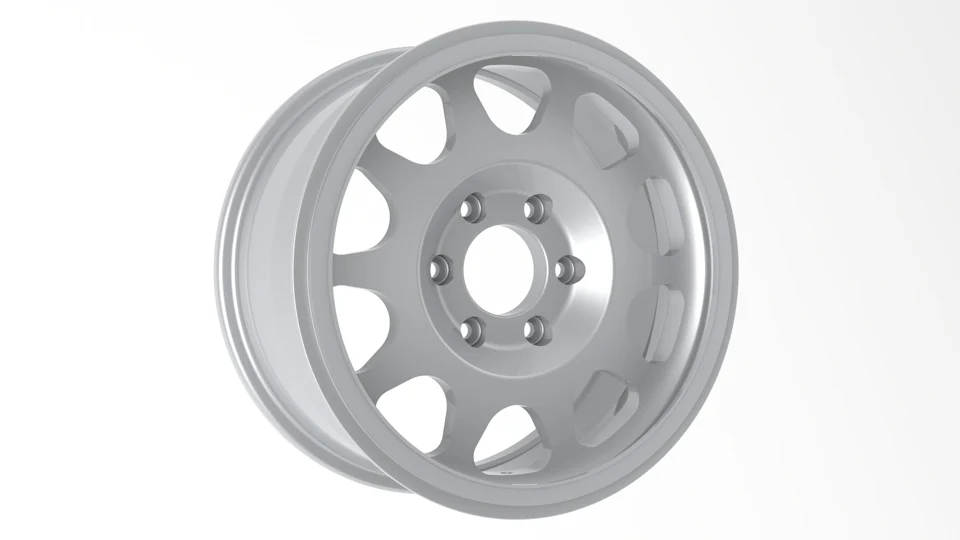

17 x 9 Slotted Alloy Truck Wheel - 1023
Six-lug pickup and SUV programs subject to full interface and wheel-load approval.
| Design model | 1023 |
|---|---|
| Size | 17 x 9 in (431.8 x 228.6 mm) |
| Mounting interface | Model drawing required |
| Proposed PCD* | 6 x 5.500 in (6 x 139.7 mm) |
*U.S. procurement target, not approved fitment. **ET shown for first listed size. Confirm alloy, process, load and tests.
Construction & Material
Alloy wheel with rounded slot windows; six-hole configuration shown. Process specification requires model approval.
Options
Proposed 6 x 5.500 in (6 x 139.7 mm); ET, bore and rated load must be supplied.
Size options
17 x 9 in (431.8 x 228.6 mm)
Procurement Value
Dedicated 17 x 9 tooling is useful for repeat batches once a fixed mounting drawing is approved.
Mounting & Selection
Vehicle/year/trim, brake package, diameter/width, lug count/PCD, center bore, offset, load, TPMS and finish.
Standards & Qualification
FMVSS 110/120 applicability; SAE J2530 aftermarket test program. Fitment and test evidence are required for the supplied configuration.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
